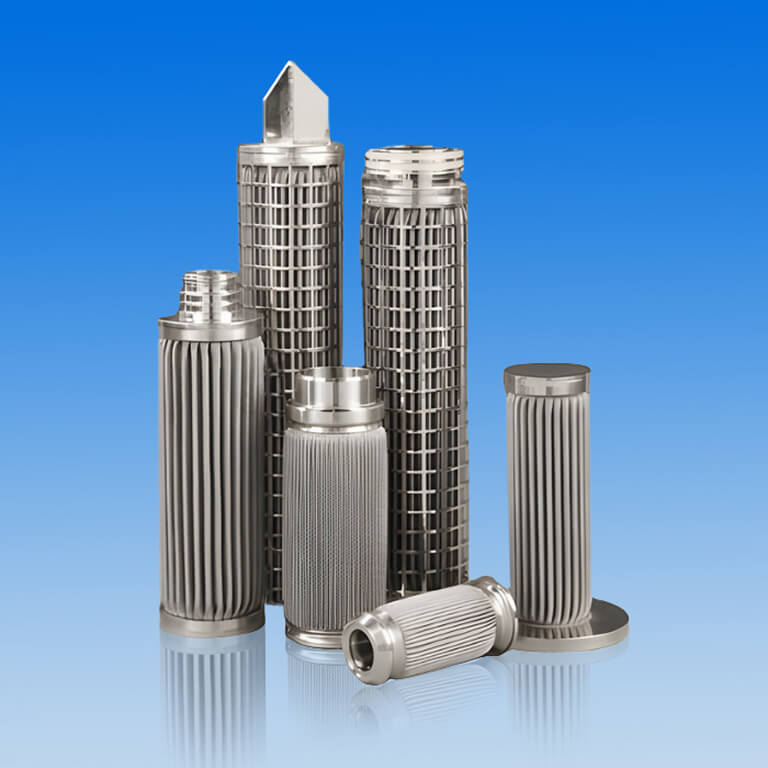

SS Wire Mesh Cartridges
SS Wire Mesh Cartridges
SS Wire Mesh Cartridges are durable and reusable filtration elements designed for high-strength liquid and gas filtration. Made from premium stainless steel, they provide excellent corrosion resistance, high-temperature tolerance, and precise particle retention. Ideal for industrial and critical applications, these cartridges ensure reliable performance, long service life, and minimal maintenance.
| Parameter | Specification / Range |
| Materials |
Filter Media / Support / Hardware: Stainless Steel (304, 304L, 316, 316L), Others on request O-ring: Silicone, Viton*, Buna-N, EPDM, PTFE |
| Retention Rating | 0.5, 1, 2, 5, 10, 20, 50, 100, 200 μm |
| Filter Media Type | Multilayered Mesh |
| Filter Element Design | Pleated, Wrapped (Cylindrical) |
| Dimensions (Nominal) |
Length: 10”, 20”, 30”, 40”, 50” (Others on request) Diameter: Standard 2.5 inch (65 mm) (Others on request) |
| End Connection Type | DOE, SOE (222/Fin, 226/Fin, 222/Flat, 226/Flat), Thread (M20, M30, M40, NPT, BSP, BSPT) (Others on request) |
| Maximum Forward Operating Pressure | 1.5 MPa (15 bar) to 2.5 MPa (25 bar) |
| Maximum Reverse Differential Pressure | 0.3 MPa (3 bar) to 0.9 MPa (9 bar) |
| Maximum Operating Temperature | From -192°C to 350°C (depending on seal material) |
