SS Sintered Cartridges
SS Sintered Cartridges

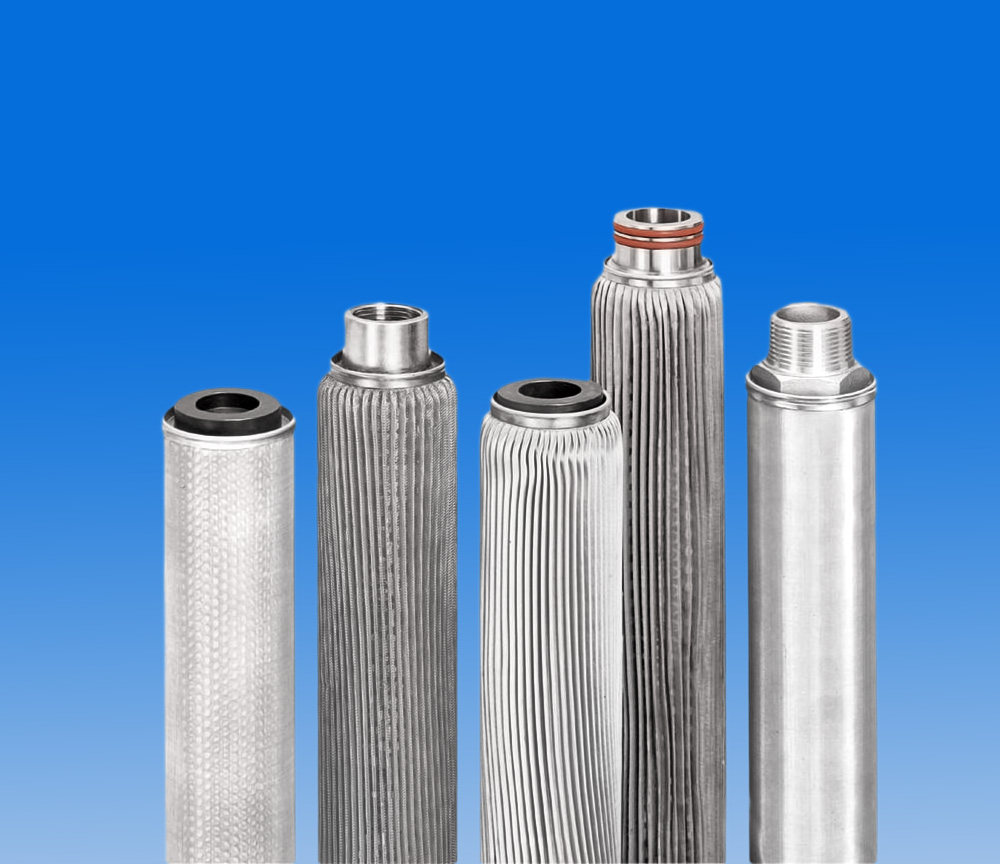

SS Sintered Cartridges are high-performance filtration elements designed for the efficient removal of fine particulates from liquids and gases. Made from premium sintered metals, they offer excellent corrosion resistance, high-temperature tolerance, and long service life. Suitable for chemical, petrochemical, pharmaceutical, food & beverage, and water treatment industries, these cartridges ensure consistent filtration efficiency, durability, and reusable operation.
| Parameter | Specification / Range |
| Materials |
Filter Media / Support / Hardware: Stainless Steel (304, 304L, 316, 316L), Inconel®, Hastelloy®, Monel®, Others on request O-ring: Silicone, Viton*, Buna-N, EPDM, PTFE |
| Retention Rating | 0.2, 0.5, 1, 2, 5, 10, 20, 50, 100, 200 μm |
| Filter Media Type | Powder Sintered |
| Filter Element Design | Pleated, Wrapped (Cylindrical) |
| Dimensions (Nominal) |
Length: 10”, 20”, 30”, 40”, 50” (Others on request) Diameter: Standard 2.5 inch (65 mm) (Others on request) |
| End Connection Type | DOE, SOE (222/Fin, 226/Fin, 222/Flat, 226/Flat), Thread (M20, M30, M40, NPT, BSP, BSPT) (Others on request) |
| Maximum Forward Operating Pressure | 1.5 MPa (15 bar) to 2.5 MPa (25 bar) |
| Maximum Reverse Differential Pressure | 0.3 MPa (3 bar) to 0.9 MPa (9 bar) |
| Maximum Operating Temperature | From -192°C to 350°C (depending on seal material) |
| Reusability | Washable and reusable multiple times |
| Surface Finish | Polished or as per process requirement |
