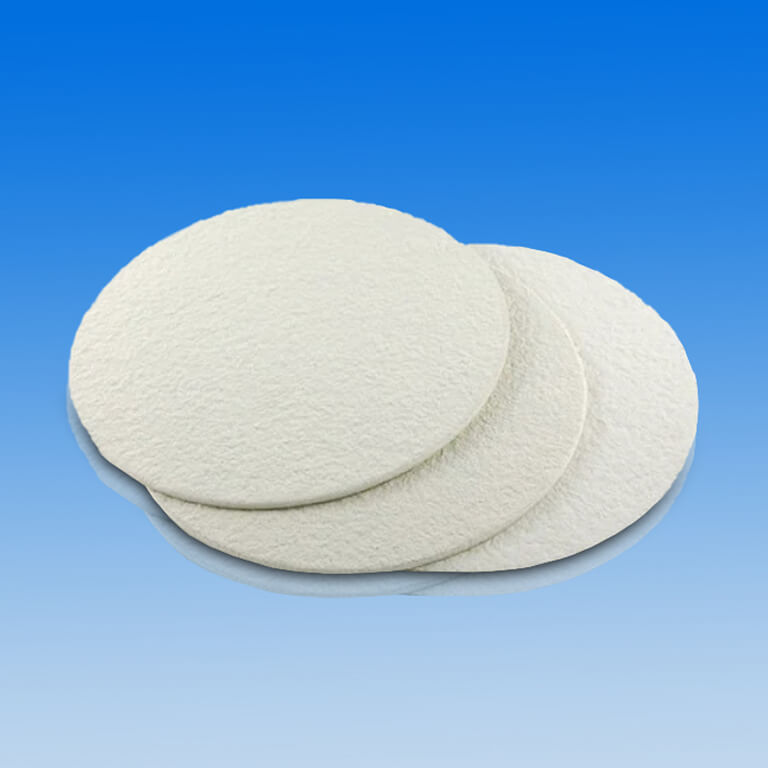

Filter Pad
Filter Sheets & Pads:
High-efficiency depth filtration media designed for clarification and fine particle removal. Offers strong dirt-holding capacity, consistent purity, and reliable performance in pharmaceutical, food & beverage, and industrial liquid filtration.
| Parameter | Specification / Range |
| Filter Media | Non Woven - Polyester, Polypropylene |
| Finish | Virgin, Carbon, Anti-static |
| Micron | 1 - 100 μm |
| Size (in Inches) | 7, 10 , 14 , 18 , 24, 36, 42 (As per Requirment) |
| Parameter | Specification / Range |
| Filter Media | Woven - Polyester, Polypropylene |
| Finish | Virgin, Carbon, Anti-static |
| Micron | 1 - 100 μm |
| Size (in Inches) | 7, 10 , 14 , 18 , 24, 36, 42 (As per Requirment) |
| Parameter | Specification / Range |
| Filter Media | Cellulose - Polyester |
| Finish | Virgin, Carbon, Anti-static, FDA Approved |
| Micron | 1 - 100 μm |
| Size (in Inches) | 7, 10 , 14 , 18 , 24, 36, 42 (As per Requirment) |
FAQs
Certifications:
Industry Applications:

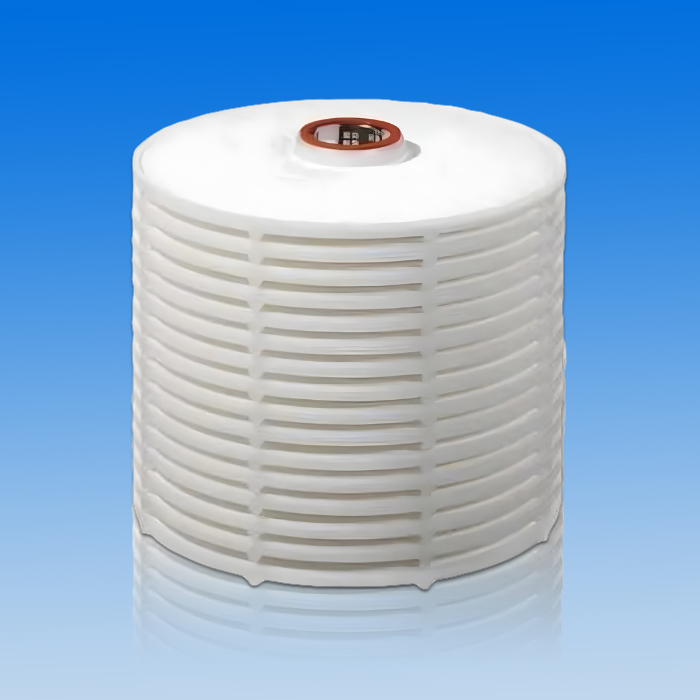

Stack Filter Cartridges:
Compact depth filtration cartridges with high dirt-holding capacity and consistent particle retention. Ideal for high-purity applications in pharma, biotech, and food processing.
| Parameter | Specification / Range |
| MOC |
Media: Cellulose, Filteraids, Resin etc Support/Diversion: Polypropylene Seal Material: Silicone, EPDM, NBR, FKM |
| Finish | Virgin, Carbon, Anti-static |
| Performance |
Max. Operating Temperature - 80°C Max. Operating DP - 2Bar@25°C 1Bar@80°C |
| Micron | 1 - 100 μm |
| Dimension |
Cells: 8 cells / 9 cells / 12 cells / 15 cells / 16 cells Outer Diameter: 8"", 10"", 12"", 16"" Filtration Area: 0.36m'(Ф8"" "", 8cells) / 1.44m'(Ф10"", 16cells) 1.08m'(Ф12"", 9cells) / 1.44m'(Ф12"", 12cells) 1.8m'(Ф12"", 15cells) / 1.92m'(Ф12"", 16cells) 2.34m'(Ф16"", 9cells) / 3.12m'(Ф16"", 12cells) 3.9m'(Ф 16"", 15cells) / 4.16m ( Ф 16"", 16cells) |
FAQs
Certifications:
Industry Applications:

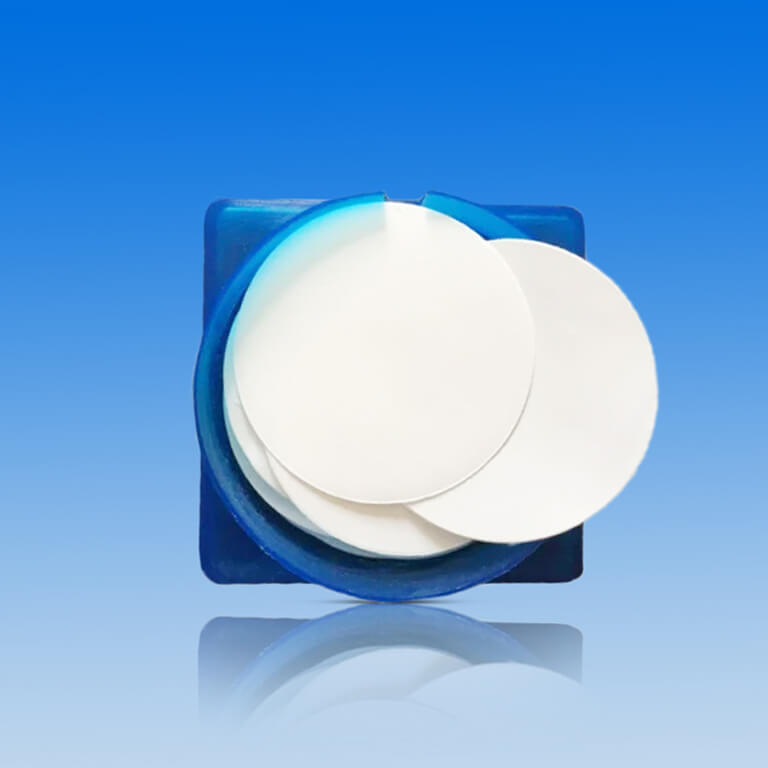

Nylon Membrane Filter Pad:
Non-sterile hydrophilic nylon membrane pads designed for reliable filtration of aqueous and organic solutions. They offer fast flow rates, excellent chemical compatibility, and precise particle retention—ideal for HPLC sample preparation, buffer filtration, and vacuum degassing. These membranes can safely handle temperatures up to 75°C and are autoclavable for up to five cycles at 121°C, ensuring durability and repeated use in critical laboratory and pharmaceutical applications
| Parameter | Specification / Range |
| Media | PTFE, PES, PVDF, Nylon |
| Performance |
Max. Operating Temperature - 80°C Max. Operating DP - 2Bar@25°C 1Bar@80°C |
| Micron | 0.2 - 0.45 μm |
| Size | 25mm / 47mm/ 90mm |
FAQs
Certifications:
Industry Applications:
