Pocket Bag Filter

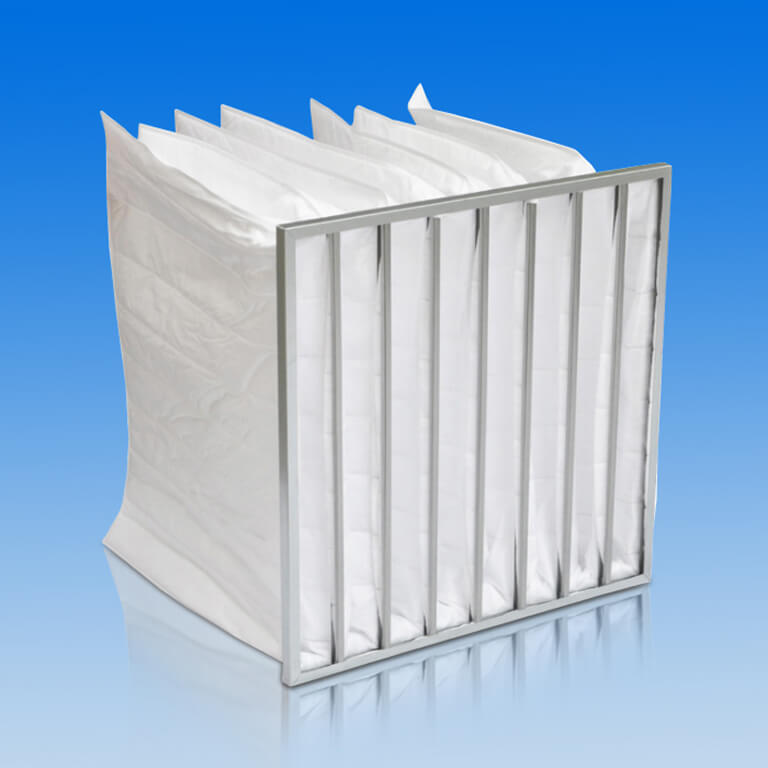

Pocket Pre Filter:

Pocket filter Design with Melt Blown Synthetic, Water resistant media, it is suitable for IAQ, and Variable Air Volume

ASHRAE 52.2 MERV 7
EN779 G4
Media Synthetic
Filter Class ISO Coarse
Application General Ventilation
Header Thickness 20mm, 25mm
Filter Depth 12" , 24"
Frame Galvanized steel
Recomm. Final Pressure drop 250 Pa
Max operating Temp 60°C

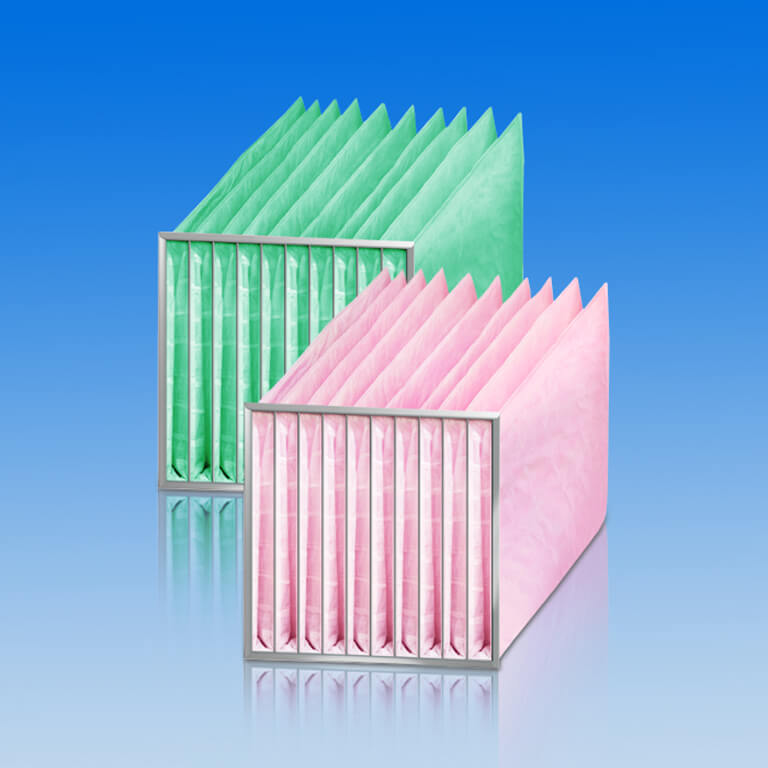

Pocket filter Fine Filter:

Pocket filter Design with Melt Blown Synthetic, Water resistant media, it is suitable for IAQ, and Variable Air Volume

ASHRAE 52.2 MERV 10
EN779 M5
Media Synthetic
Filter Class ISO Coarse
Application General Ventilation
Header Thickness 20mm, 25mm
Filter Depth 12" , 24"
Frame Galvanized steel
Recomm. Final Pressure drop 450 Pa
Max operating Temp 60°C

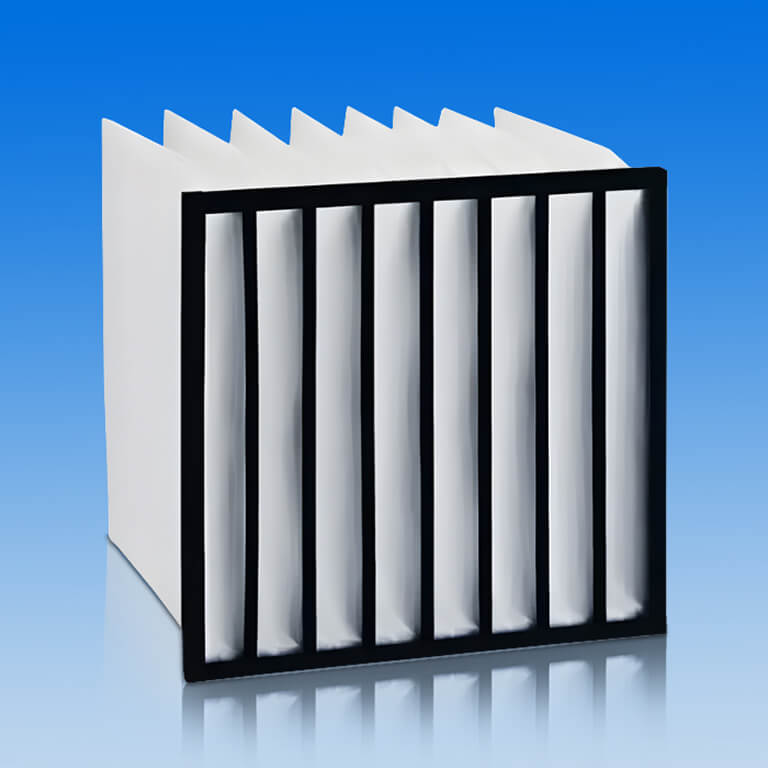

Pocket Filter (NANOWAVE Design):

Synthetic NANOWAVE pocket filter with high dust-holding capacity and low initial pressure drop for efficient, long-lasting air filtration.

ASHRAE 52.2 MERV 10 -14
EN779 M5-F8
Media Synthetic NANOWAVE
Filter Class ISO ePM2.5,- ISO ePM1
Application General Ventilation and air conditioning equipment
Filter Depth 12",24"
Frame Galvanized steel
Recomm. Final Pressure drop 300 Pa
Max operating Temp 60°C

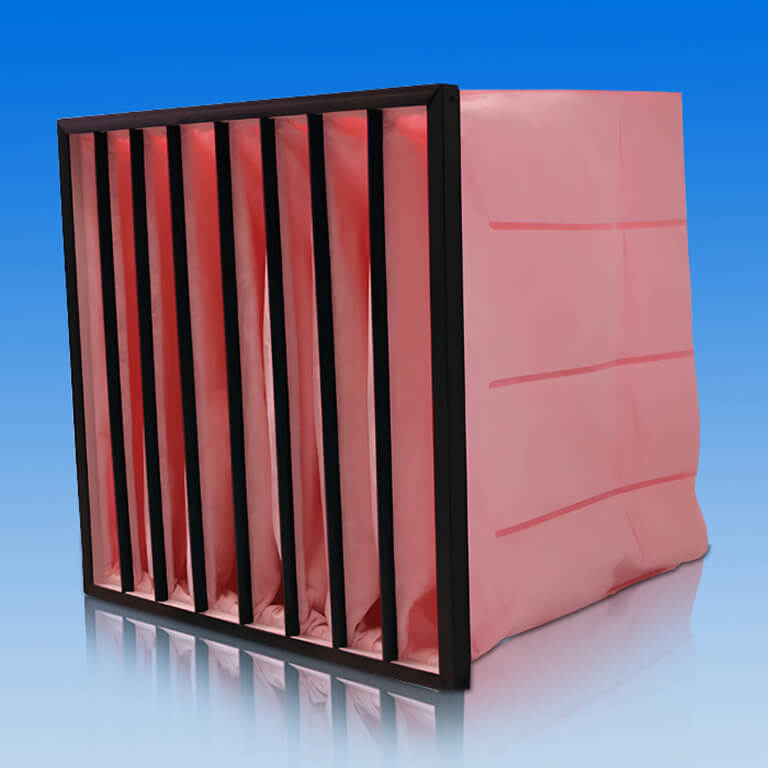

Pocket Filter (Plastic Frame):

Rigid, self-supporting pocket filter with synthetic media, offering high dust-holding capacity and low initial pressure drop for efficient, long-lasting air filtration.

ASHRAE 52.2 MERV 10-12
EN779 M5 - F8
Media Synthetic
Filter Class ISO Coarse- ISO ePM10
Application Automotive Industry, General ventilation Gas Turbine air intake system, Food Processing facilities
Filter Depth 12",24",15",30"
Frame Galvanized steel
Recomm. Final Pressure drop 450 Pa
Max operating Temp 60°C
